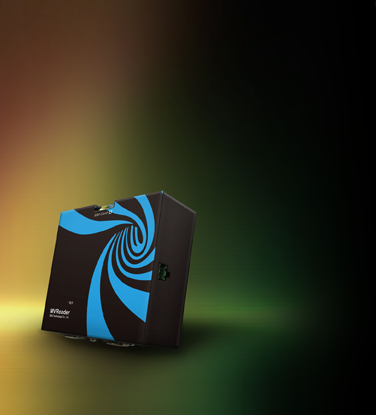

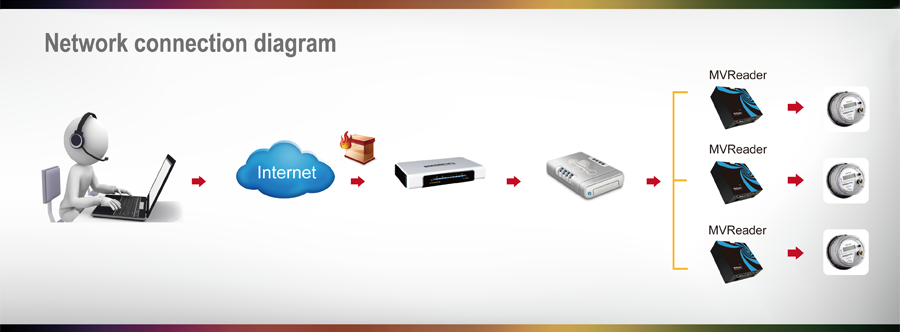

MVReader is designed to read meter via RS232 port
and communicate with control center via GPRS. It
can push meter information back to control center at
specified interval. Das Technology has cooperated
with Itron for more than 10 years, and developed
hardware/software to read/configure Sentinel/ACE
meters. |
 |
|
 |
|
 |
|
 |
MV90 compatible |
|
|
Reading meters through optical port |
| |
Convert between GPRS IP packet and MV90 serial data,
transparently compatible with MV90 for both GSM and
GPRS! You can simply connect MVReader to any MV90
compatible meters without any other middleware . |
|
|
You can read GE and Itron meters without
opening meter cover to install modems, and
no need to install phone lines. MVReader
receive data from MV90/PCPro or GE
metermate, and convert its data format so
that meter can accept via optical port. |
| |
|
|
|
|
|
Easy configuration tool |
|
|
Programmable DI |
| |
Configuring from your laptop, desktop workstantion, Win
CE handheld or even old dos handheld! Configure your
password, event detection (outage, restore), callback
phone/IP number. Can also use AT command to
configure GPRS/GSM operation. |
|
|
One optically isolated Digital Input. Can be
used to detect meter enclosure open/close.
And send SMS to Control center. |
| |
|
|
|
|
 |
LED indication (option) |
|
|
Industrial grade GSM modem |
| |
LED indication for GSM connection status and battery
status |
|
|
60°C, 10 year shelf life battery, industrial
power supply, 5KV surge protection,
robustic Siemens GSM/GPRS module!
|
|
|
 |
|
 |
|
Optical Reader Power Supply Customization Battery |
ANSI C12.18 Industrial grade universal AC power supply, for 216/110V, 50/60 HZ DAS has mor e than 10 years experience in Embedded system, we can design any device or application you want in-house! Rechargeable Lithium battery(10 year warranty). Our fail-over design enable MVReader to operate with either AC or battery power. |
|
 |
|
| Operating mode |
Data, SMS |
|
| Baud rate |
14.4kbps |
|
| SIM holder |
Both 3V and 1.8V |
|
| GSM / GPRS |
Robust simens module, dual band 900/1800 MHz |
|
| Dimension |
11*11.8*4cm (not including battery and power supply) |
|
| Output |
1watt for EGSM1800 MHZ(class 1)
2watt for EGSM 900 MHZ(class 4) |
|
| Input Power |
100~160V AC, 50/60 HZ |
|
| Serial ESD |
15KV protection(HBM) for RS232 |
|
| GSM features |
GSM/GPRS Class 10, SMS,AT
command |
|
| Temperature |
Operating temperature -20~60℃
storage temperature -40~85℃ |
|
| Serial Port |
One external RS232 ports
(DB9 male) or one RS485 port |
|
| |
|
|
|
|
